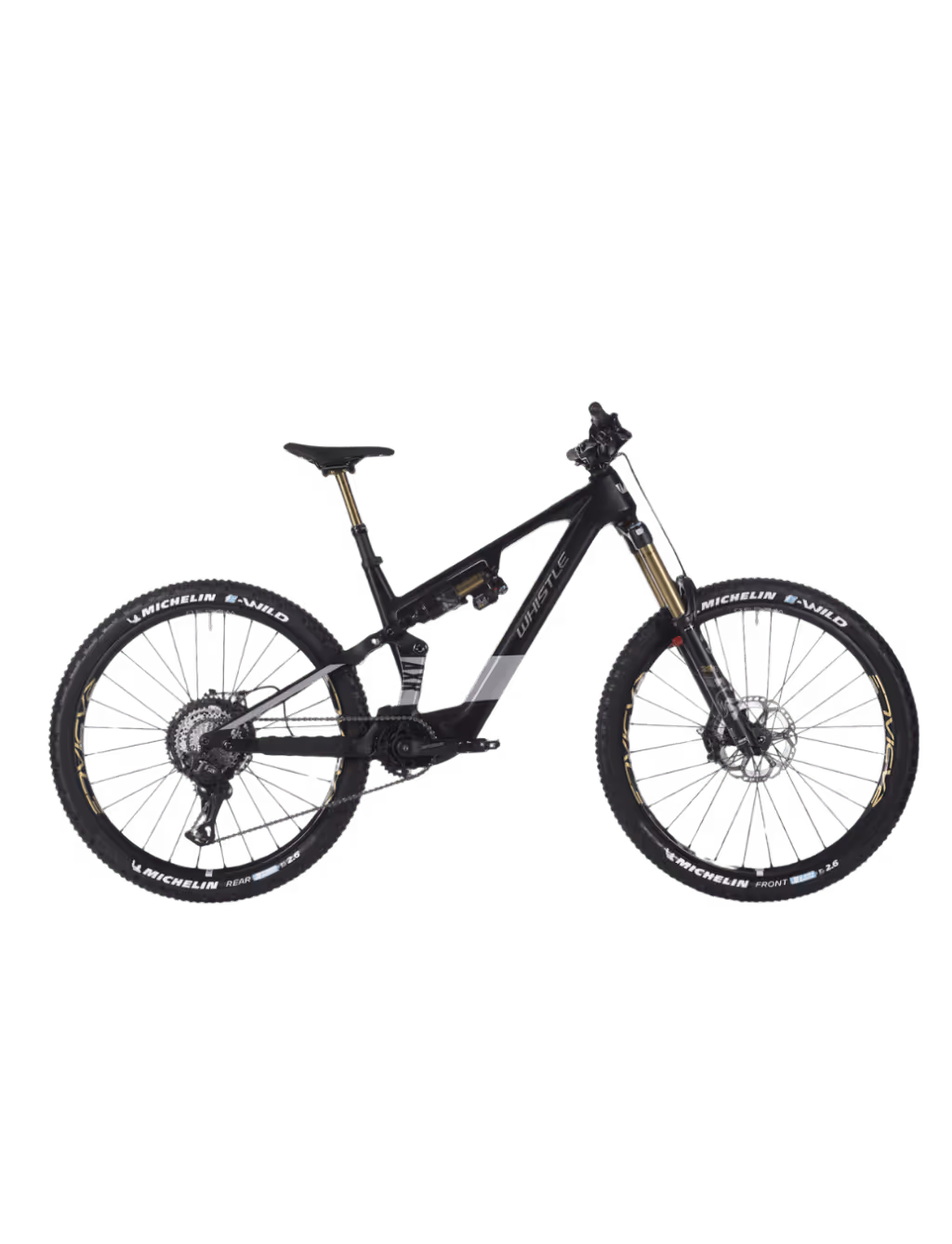

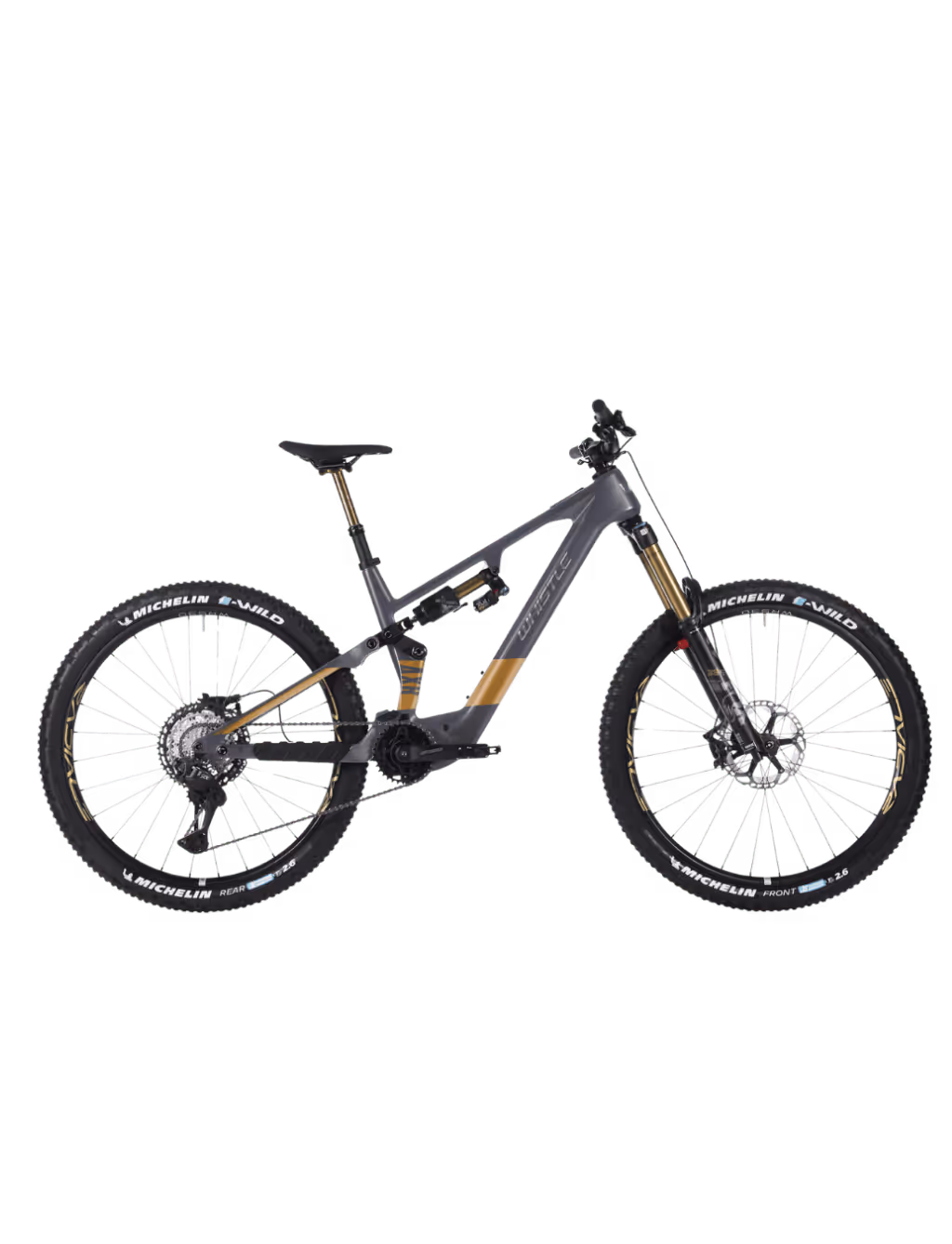

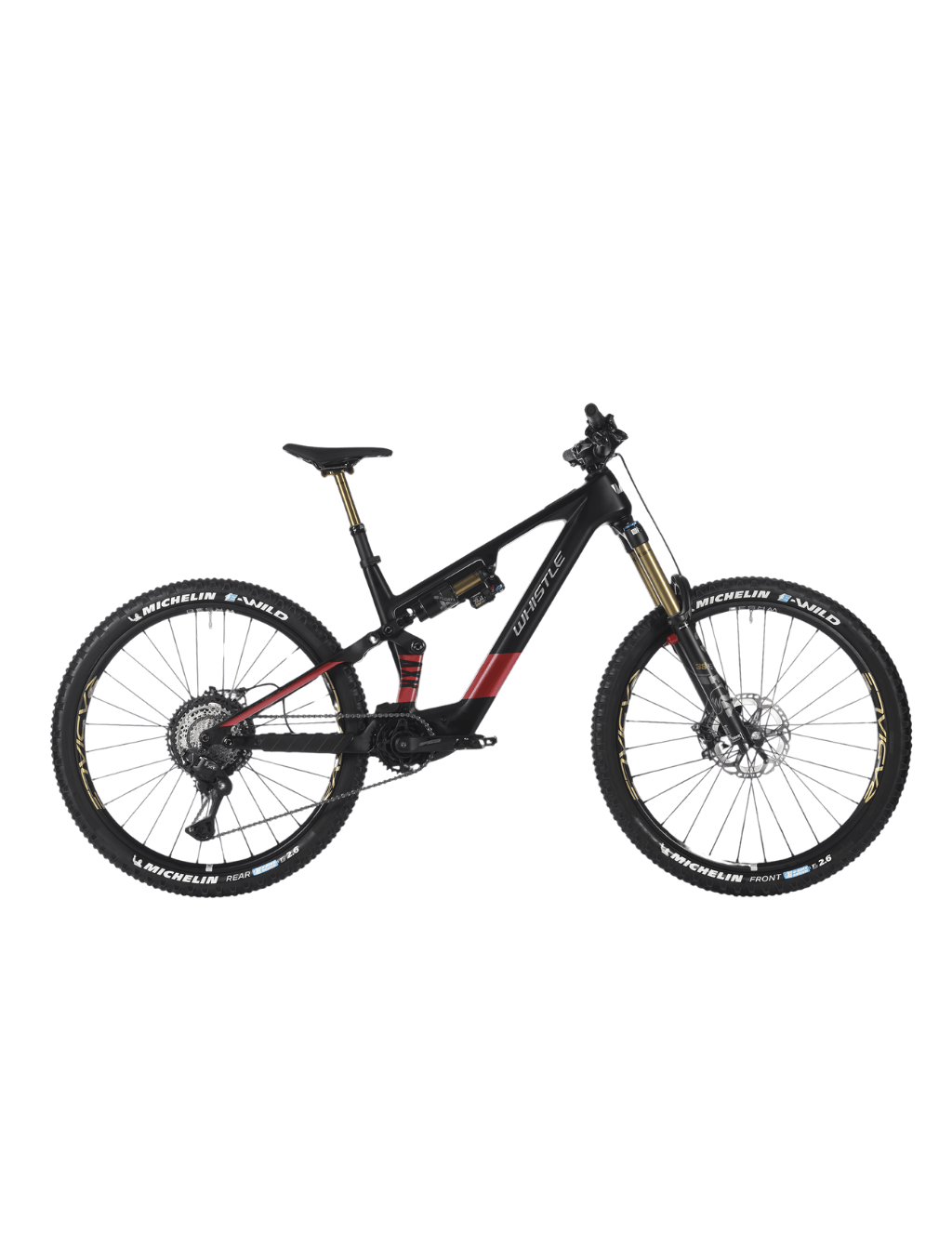

AXR C10.6

E-MTB Full Carbon
7999
Promo 7999 7999
+
+
+
+
+

Freni

Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm

Telaio

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Forcella

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Ammortizzatore

Fox Float X2 Factory,EVOL, LSR, HSR, 2 Pos-Lever, 230x65

Cambio

Shimano XT RD-M8250 SGS Di2, 12s

Ruote

Radiale WX30, Ratchet 36T

Telaio

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Forcella

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Groupset

Cockpit

Progettazione per le massime prestazioni

Telaio

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Forcella

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Ammortizzatore

Fox Float X2 Factory,EVOL, LSR, HSR, 2 Pos-Lever, 230x65

Cambio

Shimano XT RD-M8250 SGS Di2, 12s

Freni

Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm

Progettate per velocità e resistenza

Telaio

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Forcella

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Ruote

Radiale WX30, Ratchet 36T

Groupset

Cockpit

Specifiche meccaniche

Componente
Valore
Telaio
Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
Forcella
Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
Ammortizzatore
Fox Float X2 Factory,EVOL, LSR, HSR, 2 Pos-Lever, 230x65
Serie Sterzo
FSA CRII Dual, 1.5”, Internal routing
Guarnitura
FSA CK320, 34T MegaTooth
Cambio
Shimano XT RD-M8250 SGS Di2, 12s
Deragliatore
Comandi
Shimano XT SW-M8250 Di2, 12s
Freni
Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm
Pacco pignoni
Shimano CS-M8200, 12s, 10/51
Ruota Libera
Pedali
Alu MTB Full +
Catena
Mozzo anteriore
Mozzo posteriore
Cerchi
Ruote
Radiale WX30, Ratchet 36T
Cockpit
Attacco manubrio
Alu, Barbore 35 mm, Extension S-M frame 35 mm L-XL 50 mm
Piega manubrio
Alu, 780 mm, Barbore 35 mm, Rise 15 mm
Reggisella
Fox Transfer Factory Kashima, Diameter, 31.6 mm, remote
Sella
Selle Royal SRX
Coperture
Michelin e-Wild Front&Rear Competition Line, 29"x2.60", Tubeless ready
Parafanghi
Copricatena
Portapacchi
Luci
Peso
22.4kg
Taglie
40 - 44 - 48
Diam. ruota [pollici]
29’’
Velocità [marce]
12
Batteria
Avinox 800 Wh (Fixed) , weight 3.74 kg

Specifiche elettriche

Batteria
Avinox 800 Wh (Fixed) , weight 3.74 kg
Display
Avinox DP100
motore
Avinox M1 2,52 kg

Potenza e coppia massima

1000W

120 Nm

Caricabatterie

12 A

2.5 ore

Autonomia

Assistenza max

Auto / Eco / Trail / Turbo / Boost

Extras

Velocità max

25 km/h

Electric specifications

Battery
Avinox 800 Wh (Fixed) , weight 3.74 kg
Display
Avinox DP100
ENGINE
Avinox M1 2,52 kg
maximum torque
120 Nm

Max Power

1000W

Charger

12 A

2.5 ore

Autonomy

Max Assistance

Auto / Eco / Trail / Turbo / Boost

Extras

Max Velocity

25 km/h

Specifiche
prodotto

40 - 44 - 48
Taglie
BLACK/RED
Colore

Geometria che vince

Le nostre geometrie sono ideate per le competizioni. Ogni angolo e dimensione consente agilità, velocità e precisione di guida.
SCARICA TUTTE LE GEOMETRIE
IN PDF QUI
