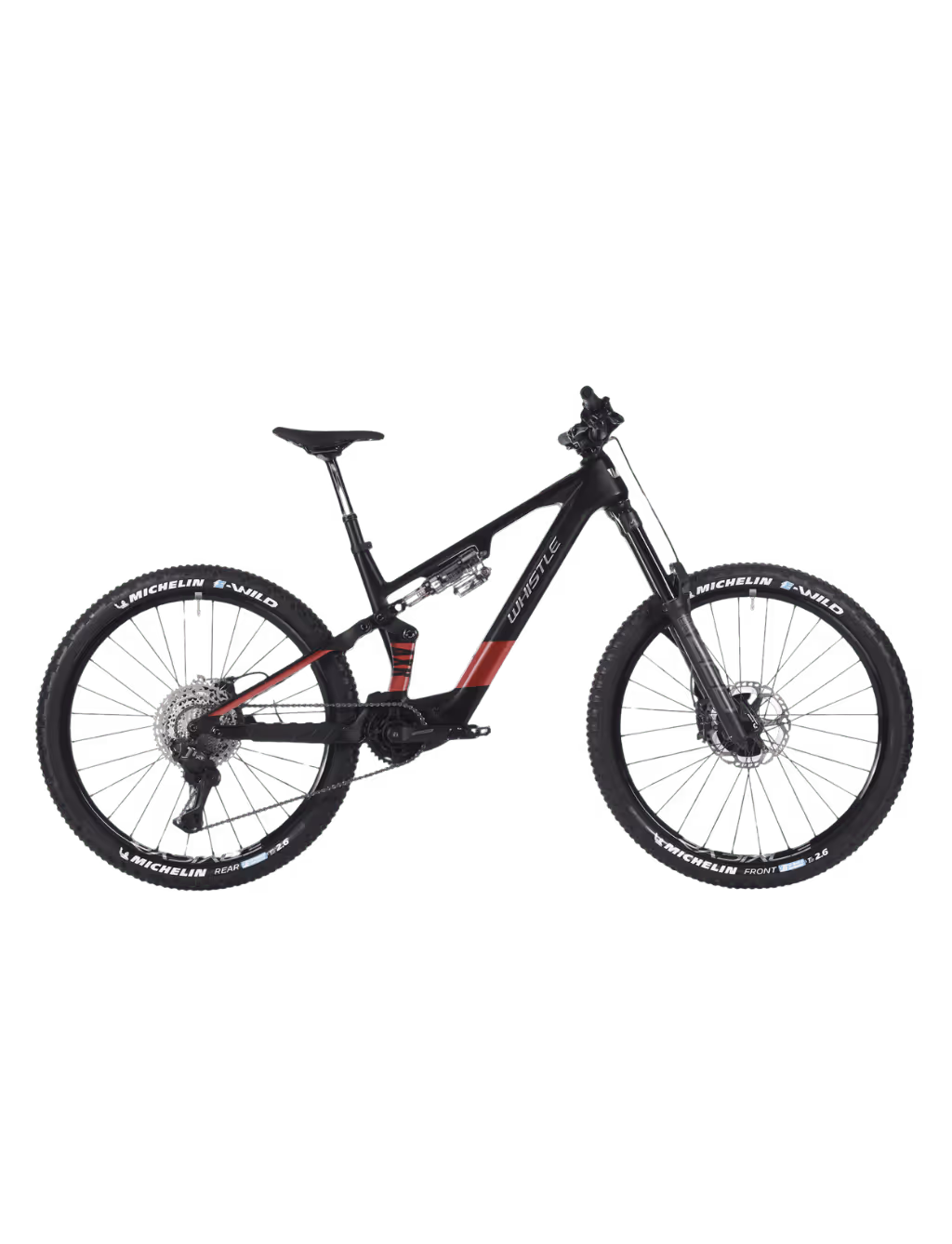

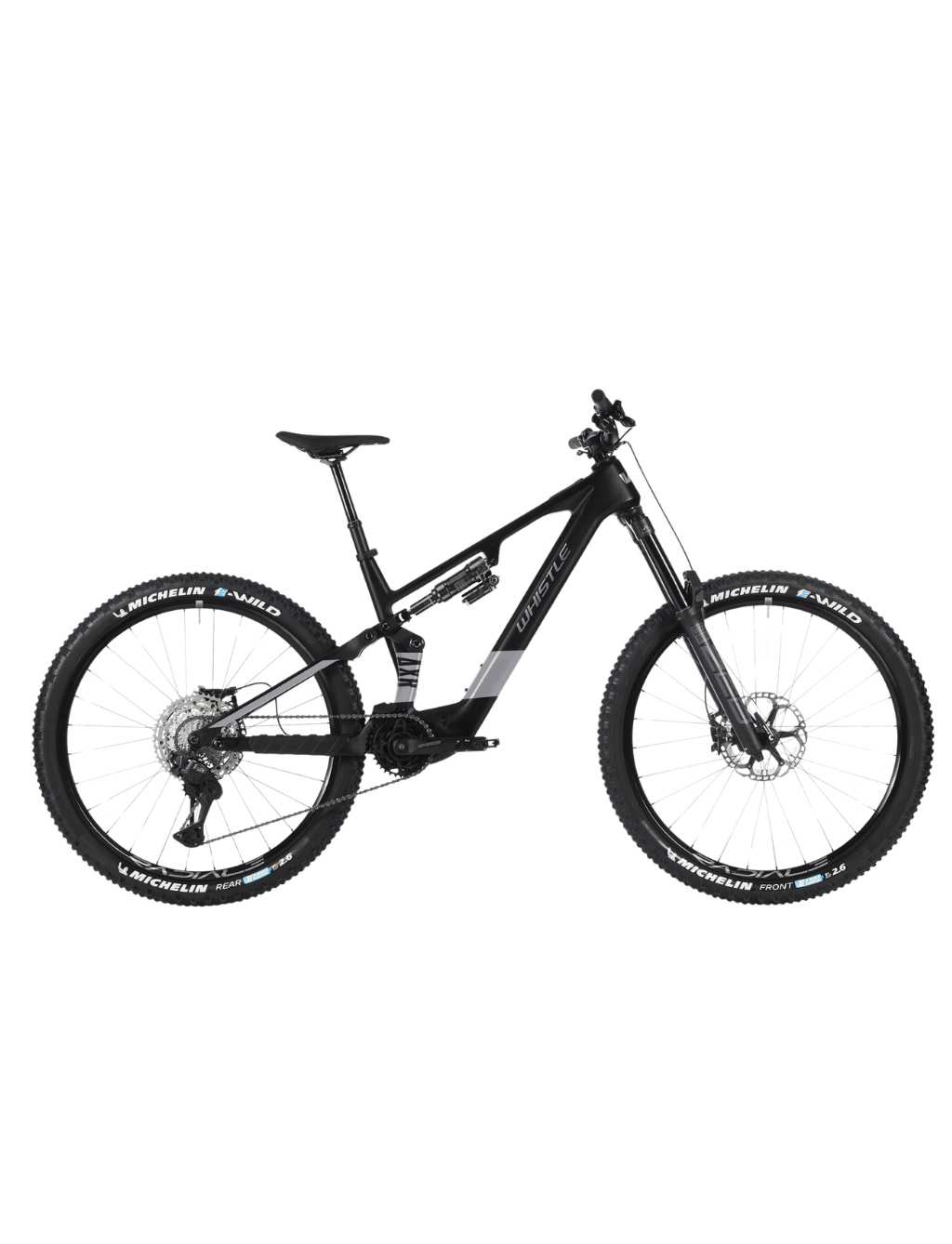

AXR C8.6

E-MTB Full Carbon
5999
Promo 5999 5999

Engineering for maximum performance

1.

Frame

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
2.

Fork

RockShox ZEB RC eMTB, Debon Air+, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
3.

Rear Shock

RockShox Super Deluxe, Debon Air Progressive, 230x65
4.

Rear Derailleur

Shimano XT RD-M8250 SGS Di2, 12s
5.

Brakes

Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm

Engineered for speed & endurance

1.

Frame

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
2.

Fork

RockShox ZEB RC eMTB, Debon Air+, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
3.

Wheels

4.

Groupset

5.

Cockpit

Mechanical Specifications

Component
Value
Frame
Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
Fork
RockShox ZEB RC eMTB, Debon Air+, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
Rear Shock
RockShox Super Deluxe, Debon Air Progressive, 230x65
Headset
FSA CRII Dual, 1.5”, Internal routing
Crankset
FSA CK320, 34T MegaTooth
Rear Derailleur
Shimano XT RD-M8250 SGS Di2, 12s
Front Derailleur
Shifters Levers
Shimano Deore SW-M6250 Di2, 12s
Brakes
Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm
Cassette
Shimano CS-M6100, 12s, 10/51
Freewheel
Pedals
Alu MTB Full +
Chains
Front hub
Shimano TC500B, 15x110, CL, 32h Radiale J110, 15x110, CL, 32h
Rear hub
Shimano TC500B, 12x148, CL, MicroSpline, 32h Formula, 12x148, CL, MicroSpline, 32h
Rims
Radiale X30, eDesign, Asymmetric, Tubeless Ready, 622x30c
Wheels
Cockpit
Stem
Alu, Barbore 35 mm, Extension S-M frame 35 mm L-XL 50 mm
Handlebar
Alu, 780 mm, Barbore 35 mm, Rise 15 mm
Seatpost
Dropper A1, Diameter 31.6 mm, remote
Saddle
Selle Royal SRX
Tyres
Michelin e-Wild Front&Rear Competition Line, 29"x2.60", Tubeless ready
Mudguards
Chaincover
Carriers
Radiale X30, eDesign, Asymmetric, Tubeless Ready, 622x30c
External lights
Weight
22.8
Size
40 - 44 - 48
Wheel diameter [inch]
29’’
Gear number
12
Battery
DJI Avinox 800 Wh (Fixed) , weight 3.75 kg

Electric specifications

battery Weight
2,52 kg
Charging time
Up to 6.9 hours
Max Velocity
25 km/h
maximum torque
120 Nm

Battery Kit

DJI Avinox, M1 2026 drive unit

Max Power

1200 W

Sensor Type

Torque

Charger

12 A

Display

DJI Avinox DP100

Battery

DJI Avinox 800 Wh (Fixed) , weight 3.75 kg

Autonomy

Max Assistance

Auto / Eco / Trail / Turbo / Boost

Extras

Engine

DJI Avinox M1 2026 2,6 kg

Electric specifications

battery Weight
2,52 kg
Charging time
Up to 6.9 hours
Max Velocity
25 km/h
maximum torque
120 Nm

Battery Kit

DJI Avinox, M1 2026 drive unit

Max Power

1200 W

Sensor Type

Torque

Charger

12 A

Display

DJI Avinox DP100

Battery

DJI Avinox 800 Wh (Fixed) , weight 3.75 kg

Autonomy

Max Assistance

Auto / Eco / Trail / Turbo / Boost

Extras

Engine

DJI Avinox M1 2026 2,6 kg

Product Specs

40 - 44 - 48
Sizes
