Engineering for maximum performance

Frame

Full Carbon 29”, Toray T700, Dual Integrated battery, Tapered Internal routing, 12x148 mm E-Thru

Fork

Zoom 860S, Coil, Lockout, 29", Travel 100 mm, QR

Rear Shock

Rear Derailleur

Shimano Deore RD-M5120, Shadow Plus, 10s

Brakes

Shimano BR-MT200, Rotor SM-RT10 180 mm/180 mm

Engineered for speed & endurance

Frame

Full Carbon 29”, Toray T700, Dual Integrated battery, Tapered Internal routing, 12x148 mm E-Thru

Fork

Zoom 860S, Coil, Lockout, 29", Travel 100 mm, QR

Wheels

Radiale X25, eDesign | Asymmetric, Tubeless Ready, 622x25c

Groupset

Cockpit

Mechanical Specifications

Component

Value

Frame

Full Carbon 29”, Toray T700, Dual Integrated battery, Tapered Internal routing, 12x148 mm E-Thru

Fork

Zoom 860S, Coil, Lockout, 29", Travel 100 mm, QR

Rear Shock

Headset

Acros for Viper, 1,5”, Internal routing

Crankset

FSA, 38T, MegaTooth

Rear Derailleur

Shimano Deore RD-M5120, Shadow Plus, 10s

Front Derailleur

Shifters Levers

Shimano Deore SL-M4100 Rapidfire-Plus, 10s

Brakes

Shimano BR-MT200, Rotor SM-RT10 180 mm/180 mm

Cassette

Shimano CS-M4100, 10s, 11/46

Freewheel

Pedals

Alu TKK

Chains

Front hub

Rear hub

Rims

Wheels

Radiale X25, eDesign | Asymmetric, Tubeless Ready, 622x25c

Cockpit

Stem

Satori Viper0, Barbore 31,8 mm, Internal routing

Handlebar

Alu, 640 mm, Barbore 31.8 mm, Rise 25 mm, Back sweep 25°

Seatpost

Alu 31,6 mm

Saddle

Selle Royal Essenza

Tyres

Schwalbe Smart Sam, Performance, Addix, 29”x2.35”

Mudguards

Chaincover

Carriers

External lights

Weight

Size

Wheel diameter [inch]

Gear number

Battery

625 & predisposition for 500

Electric specifications

battery Weight

Charging time

Up to 9 hours

Max Velocity

25 km/h

maximum torque

85 Nm

Battery Kit

Max Power

Sensor Type

Torque

Charger

4 A

Display

PURION

Battery

625 & predisposition for 500

Autonomy

Max Assistance

Eco: 55 % Tour: 120 % Sport: 200 % Turbo: 300 %

Extras

Engine

Electric specifications

battery Weight

Charging time

Up to 9 hours

Max Velocity

25 km/h

maximum torque

85 Nm

Battery Kit

Max Power

Sensor Type

Torque

Charger

4 A

Display

PURION

Battery

625 & predisposition for 500

Autonomy

Max Assistance

Eco: 55 % Tour: 120 % Sport: 200 % Turbo: 300 %

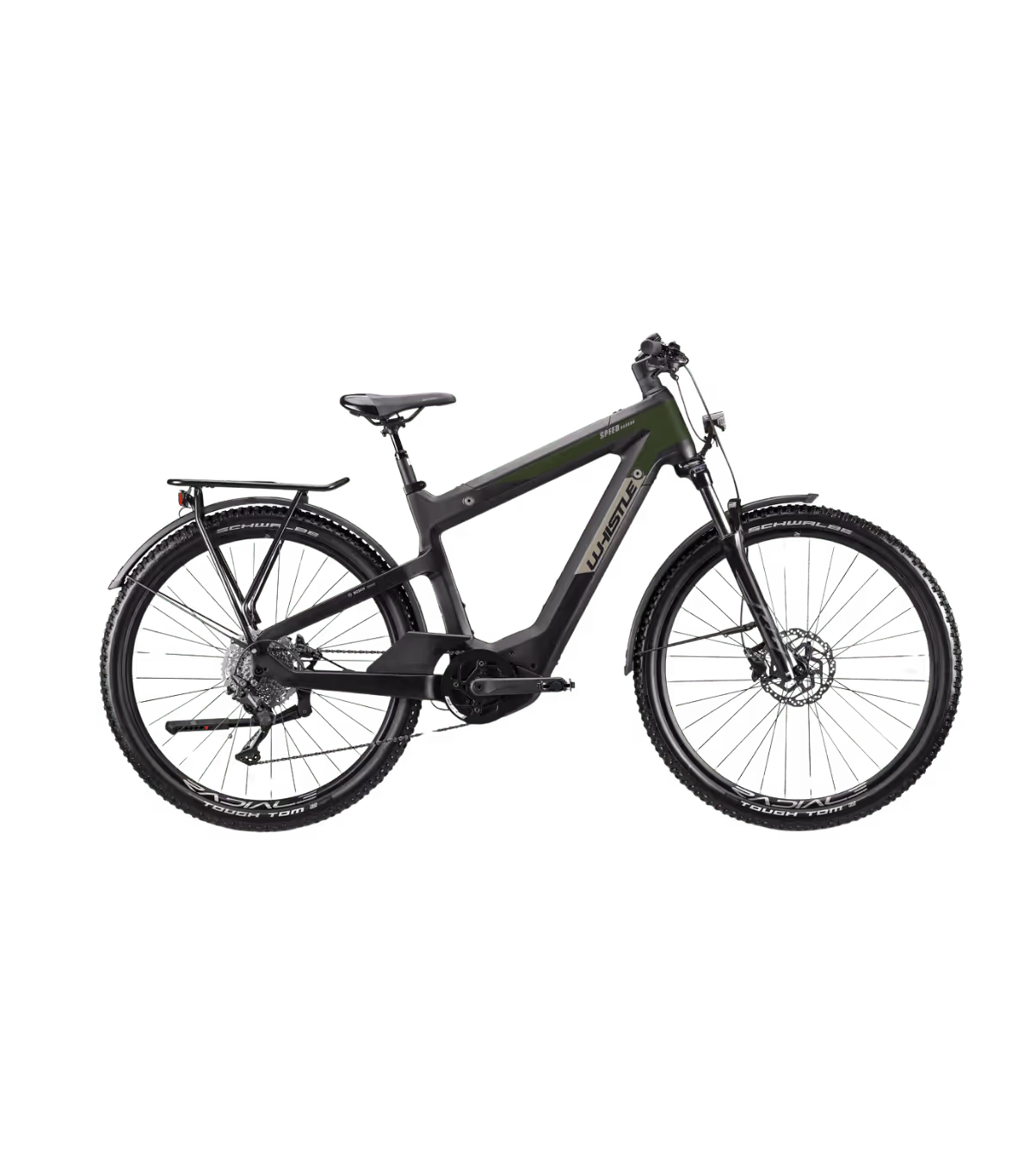

Speed Urban C8.5 Man
